How to Read Cell LED

LED Scenarios

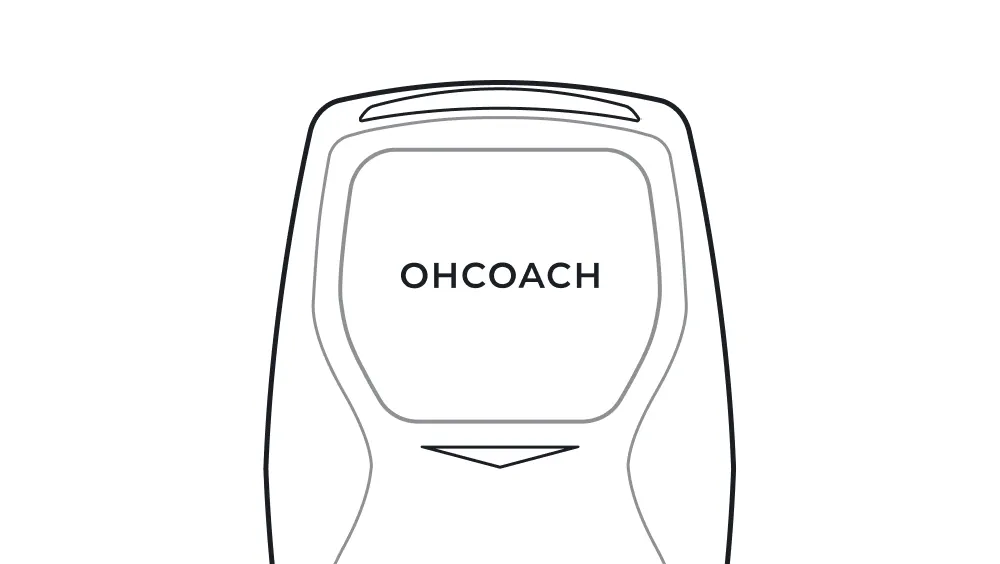

Cell X4 LED Scenario
Charging State
Charging
lasting
-

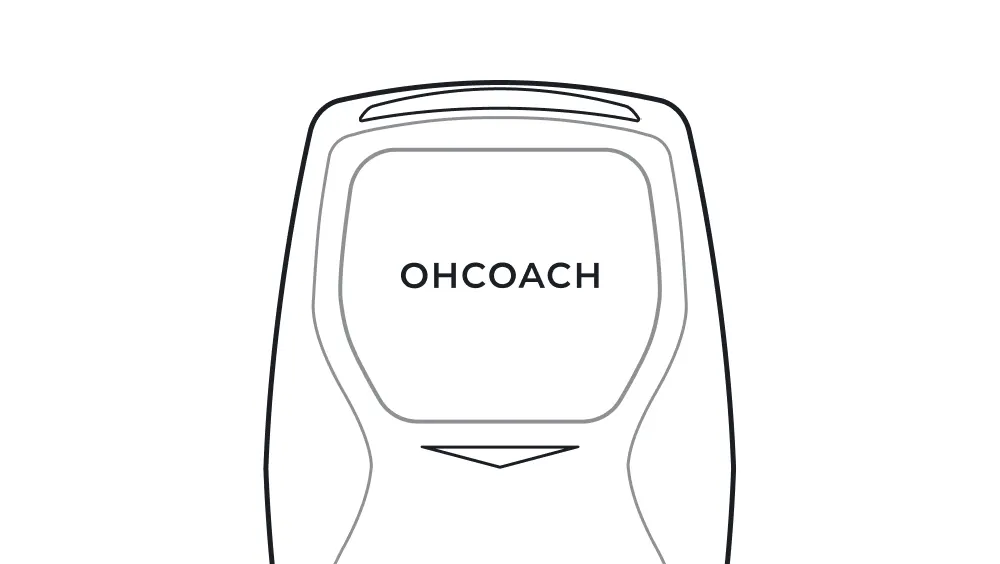

Charging State
Charging complete
lasting
-

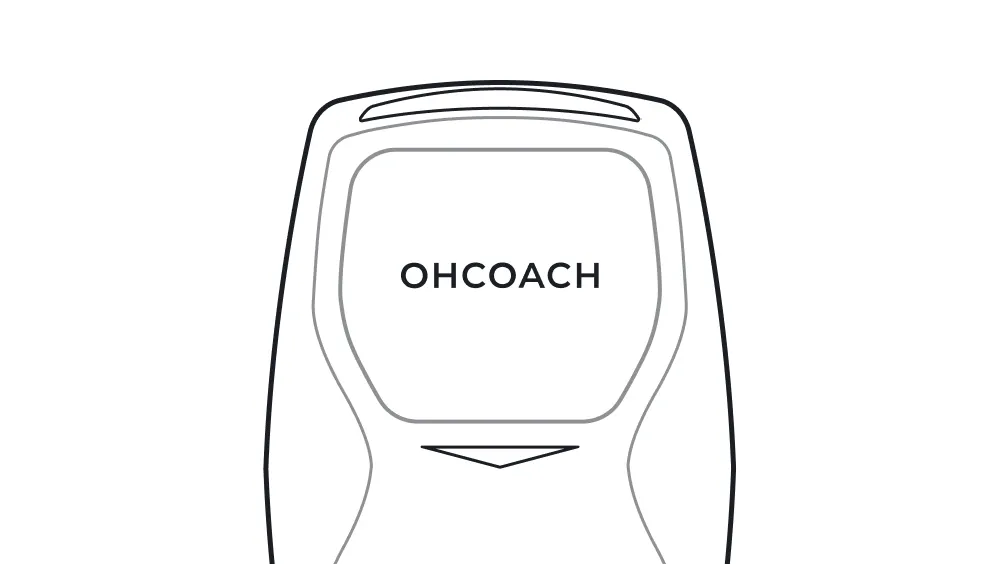

Event
Power on
 x lasting for 3 seconds
 x lasting for 3 seconds

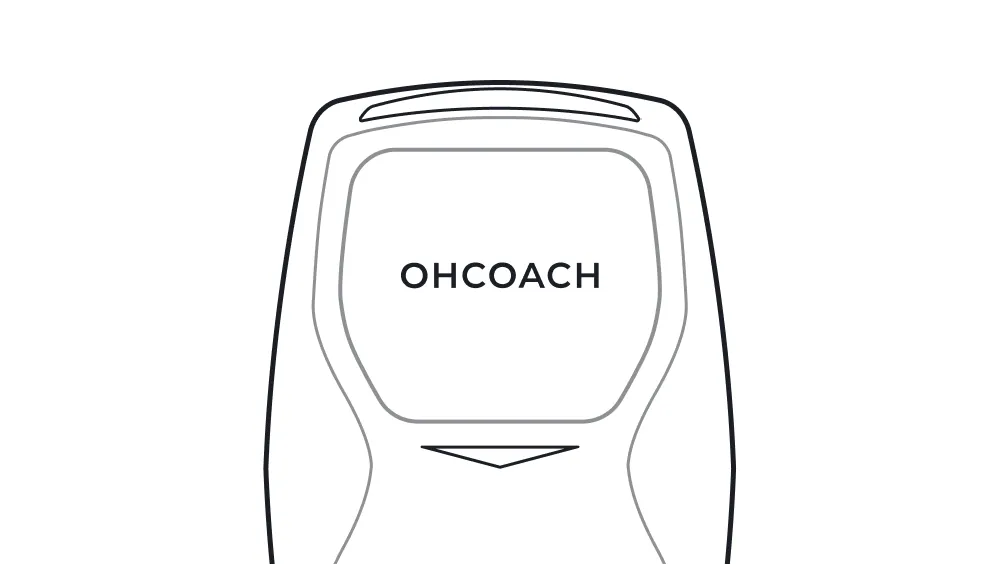

Event
Power off
 x lasting for 3 seconds
 x lasting for 3 seconds

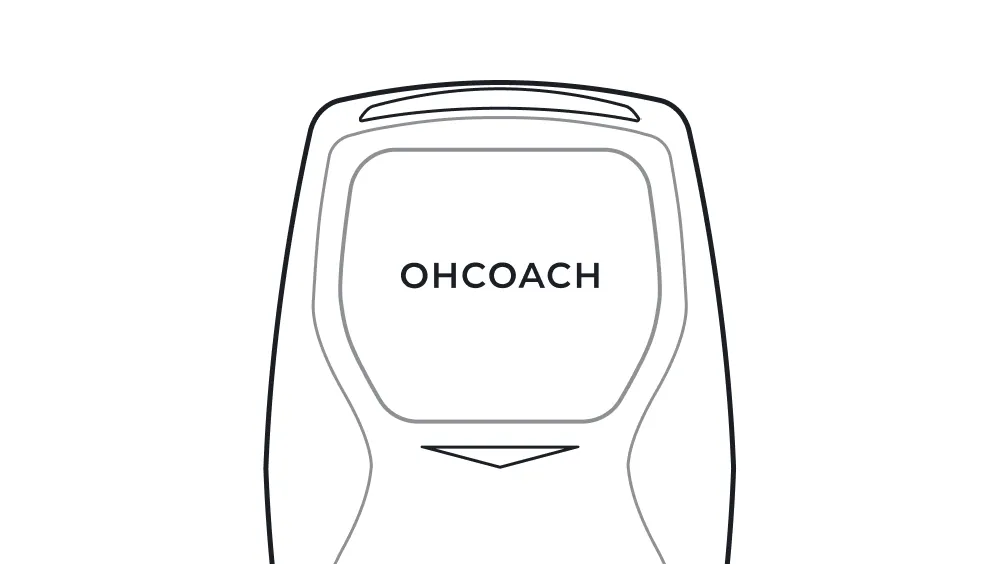

Cell State
Low battery
 x Blinks every second for 10 minutes
 x Blinks every second for 10 minutes

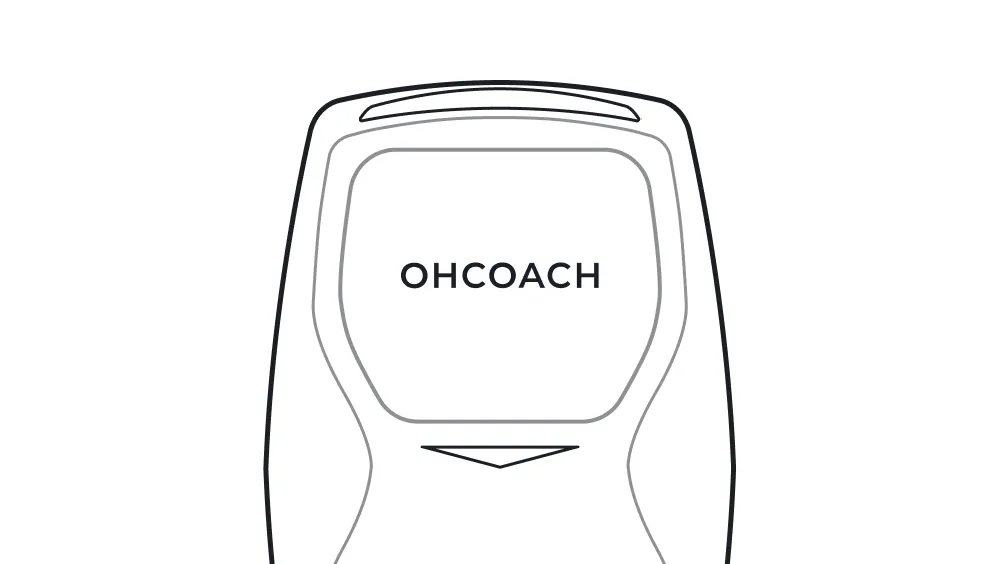

Cell State
Memory full
 x Blinks twice every second for 10 minutes
 x Blinks twice every second for 10 minutes

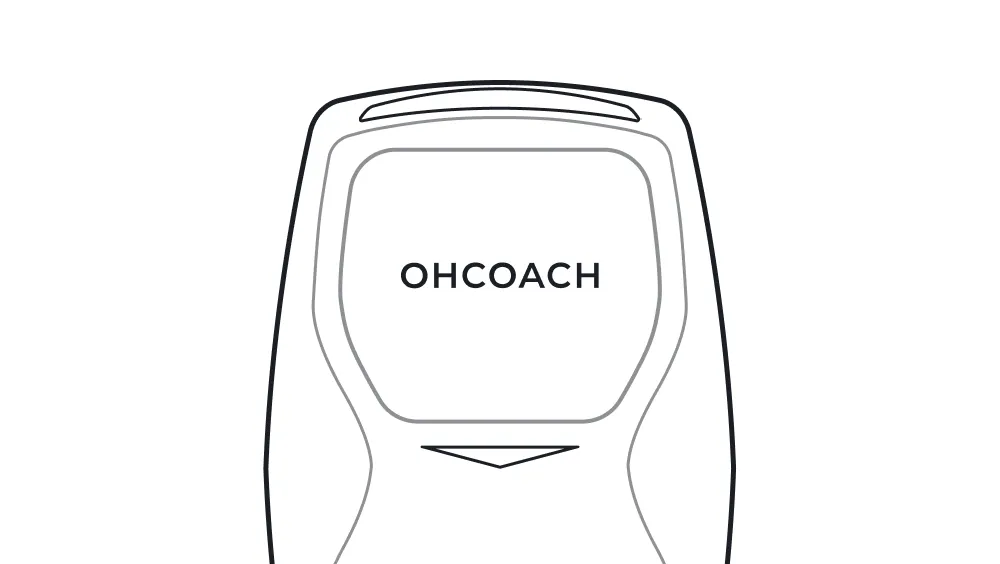

Data Communication Status
Searching for a GPS signal
 x blinks every second
-

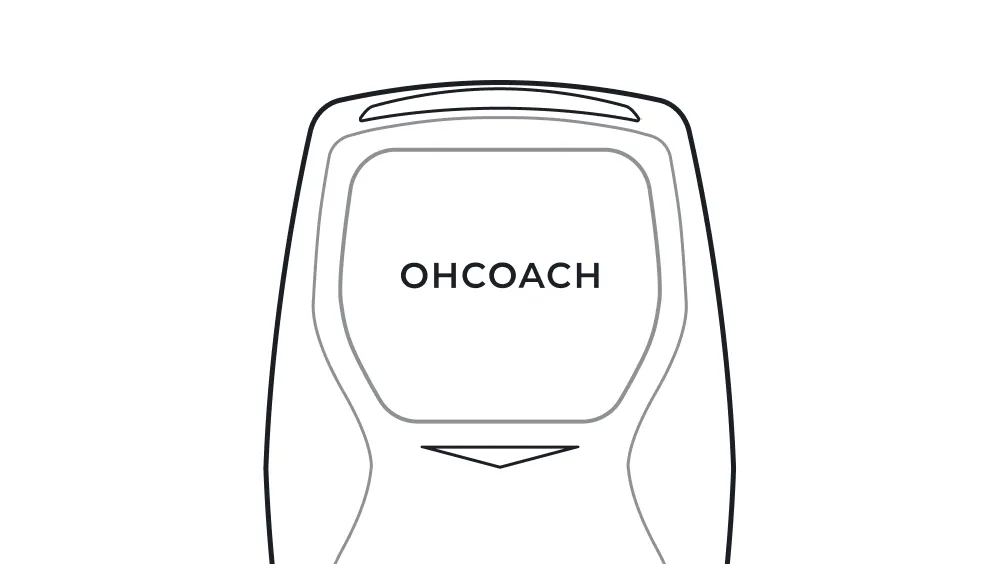

Data Communication Status
Receiving GPS
 x blinks every second
-
Data Communication Status
Not receiving GPS + Communicating with Live Hub (Not receiving HR)
 x blinks every second
 x blinks every second
Data Communication Status
Receiving GPS + Communicating with Live Hub (Not receiving HR)
 x blinks every second
 x blinks every second
Data Communication Status
Receiving GPS + Loss of communication with Live Hub (Not receiving HR)
 x blinks every second
 x blinks every second
Data Communication Status
Not receiving GPS + Receiving HR + Communicating with Live Hub
 x Blinks twice per second
 x Blinks twice per second
Data Communication Status
Receiving GPS + Receiving HR + Communicating with Live Hub
 x Blinks twice per second
 x Blinks twice per second
Data Communication Status
Receiving GPS + Receiving HR + Loss of communication with Live Hub
 x Blinks twice per second
 x Blinks twice per second
Data Communication Status
Receiving GPS + Receiving HR
 x Blinks twice per second
-

Easy way to check data communication status through Cell LED

Note
In situations where Cell power is turned on/off or device status (battery, memory, etc.) needs to be notified, the Cell's power operation or status notification LED is prioritized regardless of data communication status.
•
The top LED blinks green. → GPS reception is smooth.
•
The upper LED blinks in rainbow color. → Not getting GPS reception. When you move to an area with a good signal, you can automatically pick up the GPS signal again.
•
The top LED blinks quickly. → HR data reception is smooth.
•
The center LED is off. → If you haven't connected to a Live Hub, it's normal.
•
The center LED starts blinking. → This indicates that communication with the Live Hub has started.
•
The center LED blinks green. → Communication with the Live Hub is smooth.
•
The center LED blinks orange. → Communication with the Live Hub is not smooth. When the distance between the Cell and the Live Hub gets closer, it can automatically pick up the signal again.
