Assemble Live Hub
1.
Mount the antenna on the Live Hub.
2.
Adjust the tripod legs to stand stable on the floor.
3.
Attach the ball head to the tripod.
4.
Attach the plate to the Live Hub and tighten it.
5.
Mount the plate mounted on the Live Hub to the tripod.
Install Live Hub
Case 1
•
In the figure, location 1 is the installation location during practice/training.
Case 2
•
In the figure, location 2 is the installation location for the home team in the match.
•
Install the Live Hub on the left end of the bench seat.
•
Make sure the front of the Live Hub faces the diagonal corner.
Case 3
•
In the figure, location 3 is the installation location for the away team in the match.
•
Install the Live Hub on the right end of the bench seat.
•
Make sure the front of the Live Hub faces the diagonal corner.

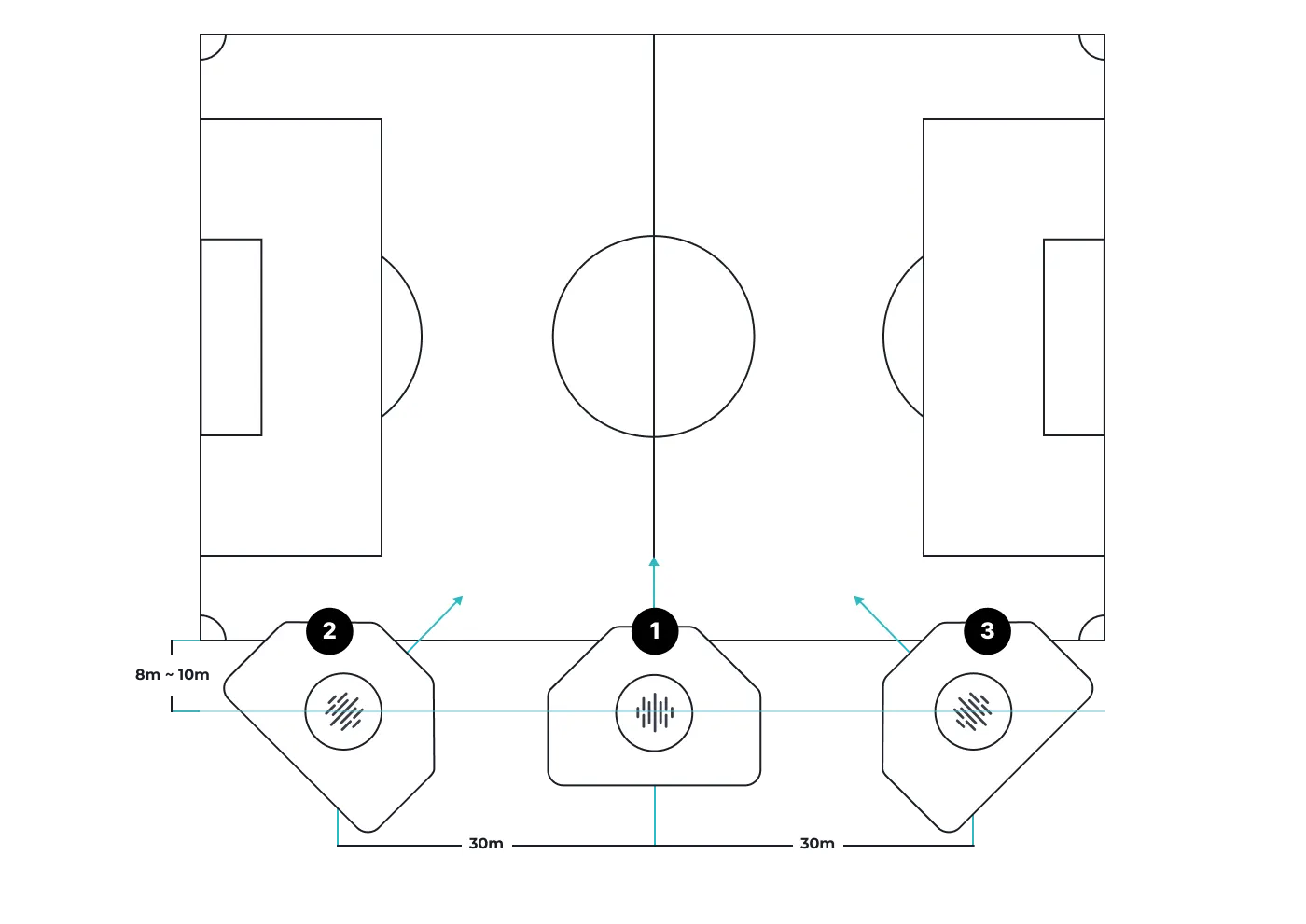

Installation Locations for Live Hub
