OHCOACH Dock - DKP1 is for charging OHCOACH Cell and extracting/uploading data.
Note
This manual is based on OHCOACH Dock DKP1-3 model.
If you are using a different model, please refer to the appropriate manual for your model.
Specifications
Dimensions | 410 (L) X 340 (H)X 150 (T) mm |
Weight | 4.4 kg |

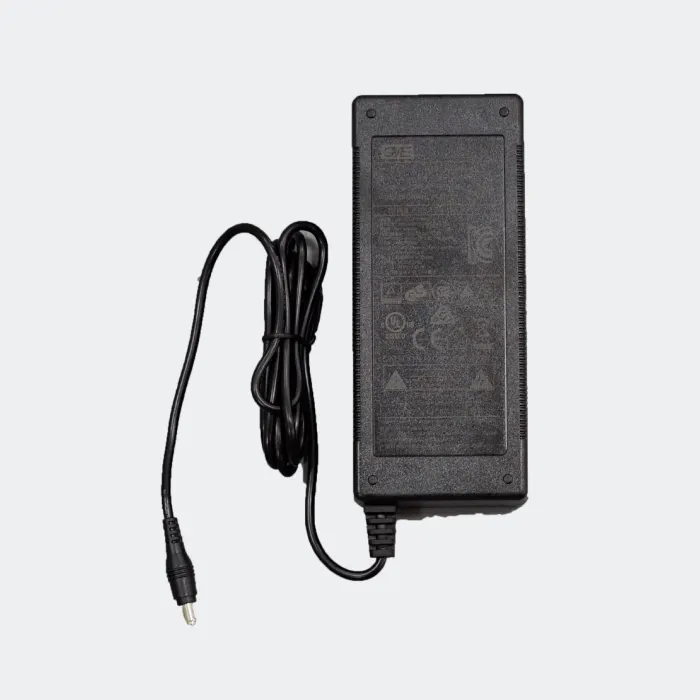

Power | 24 V / 6 A / 144 W |

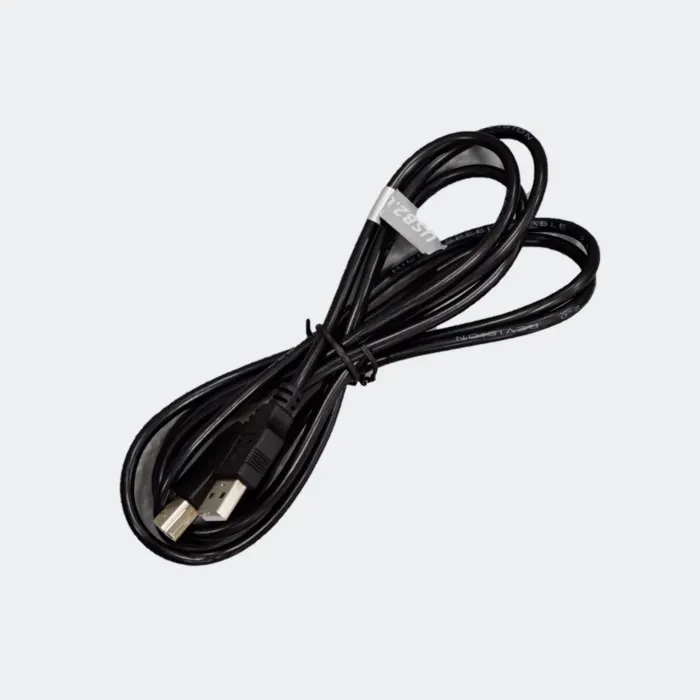

Connectivity | USB 2.0 |
Number of Cell Ports | Up to 36 Cells |
Cell Power Control | Single button control to power on/off Cells |
Operation Condition | -10 °C to 5 °C |
Certifications | CE (Europe), FCC (USA), VCCI J-MIC (Japan), KC (South Korea) |
Layout

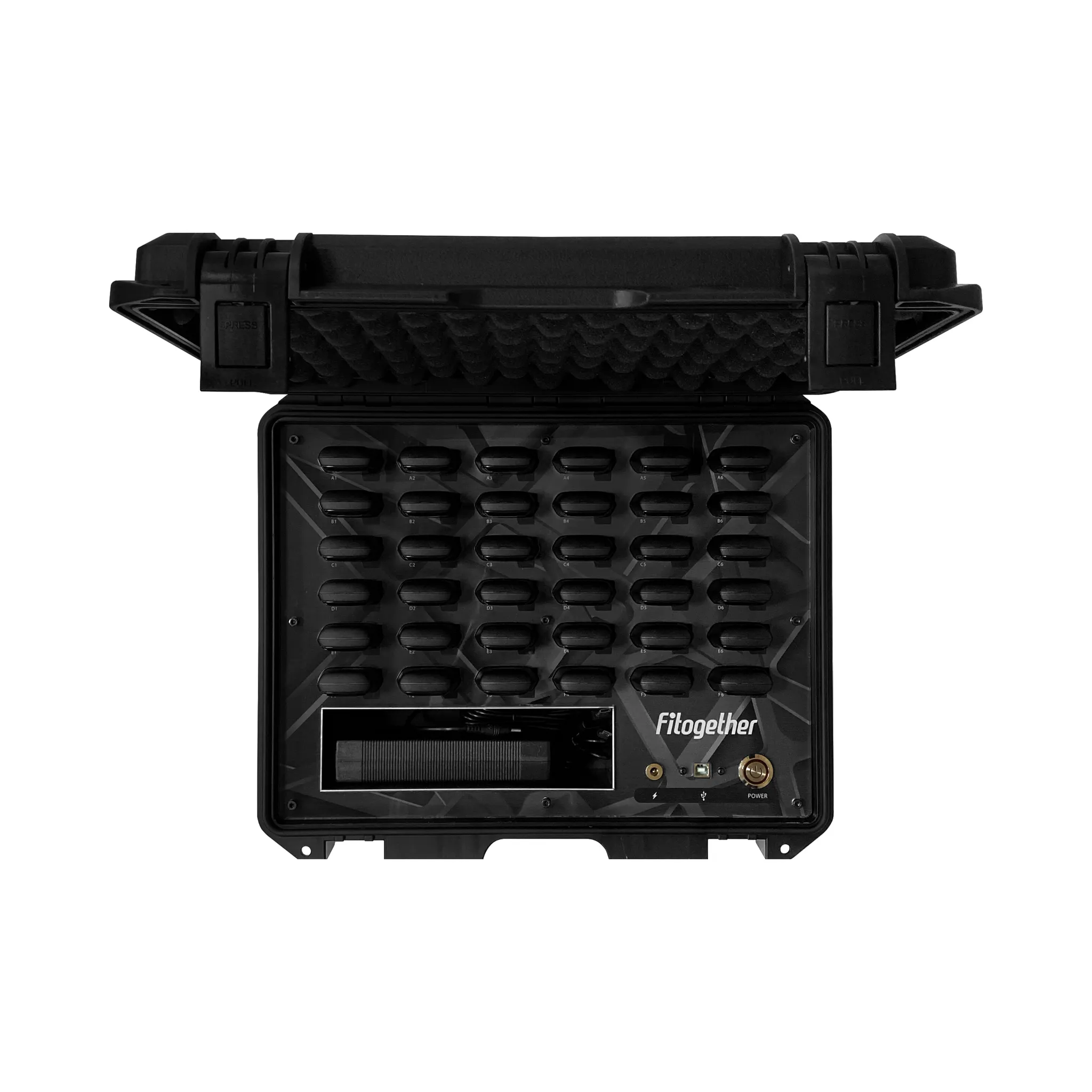

Front
•
Power button
•
Charger port
•
Data port
•
Cell ports
•
Accessory storage space
Rear
•
Device info label (serial number, certification marks, etc.)
