OHCOACH Cell is Fitogether’s wearable device that measures the position and movement of athletes.
Note
This manual is based on OHCOACH Cell X4 model.
If you are using a different model, please refer to the appropriate manual for your model.
Specifications
Dimensions | 45 (L) X 76 (H)X 18 (T) mm |
Weight | 51 g |
Battery | 6 hrs (GNSS only)
4 hrs (GNSS + Live monitoring)
2.2 hrs (GNSS + Live monitoring + HR) |
Storage | 128MB NAND |
Global Positioning | 10 Hz GNSS (GPS / GLONASS / Galileo / BeiDou) |
Wireless Communication | Wi-Fi 802.11b/g/n, Bluetooth 4.2 and Bluetooth LE |
Wireless Range | Up to 120 m |
Heart Rate | Fitogether OHCOACH HR Sensor Compatible
Polar OH1/H10 Compatible |
Accelerometer | 3D +/- 16 G, Sampled at 1 kHz, Provided @ 100 Hz |
Gyroscope | 3D +/- 2000 deg/s @ 100 Hz |
Magnetometer | 3D +/- 4800 uT @ 100 Hz |
Operation Condition | -10 °C to 55 °C |
Waterproof | IPX6 (Sweat-proof / Splash-proof) |
Certifications | FIFA Basic, FiFA Quality,
CE (Europe), FCC (USA), VCCI J-MIC (Japan), KC (South Korea), NBTC (Thailand) |
Layout

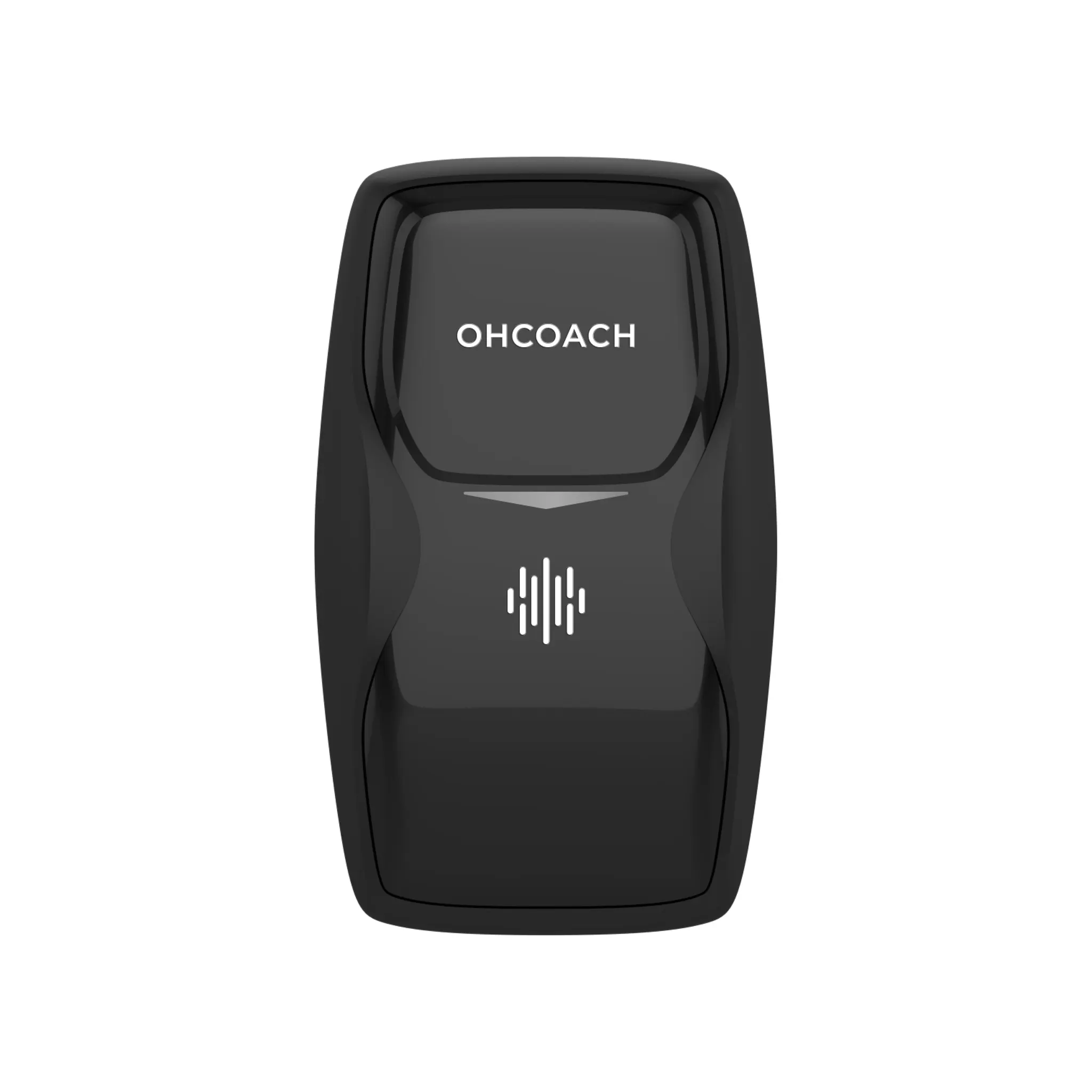

Front
•
GPS antenna
•
Top LED
•
Center LED
Rear
•
Power button
•
Charger port
•
Device info label (serial number, certification marks, etc.)
